NBR & PVC & EPDM Rubber Insulation Foam Pipe/Sheet/Tube Production Line

Name: NBR amp PVC amp EPDM Rubber Insulation Foam PipeSheetTube Production Line
Brand: HUASHIDA
Price: 450 USD

Wholesale NBR & PVC & EPDM Rubber Insulation Foam Pipe/Sheet/Tube Production Line from china suppliers

Brand Name : HUASHIDA

Model Number : Rubber Insulation Foam Pipe

Certification : ce

Place of Origin : CHINA,QINGDAO

MOQ : 1

Price : US$450,000.00 - 600,000.00

Payment Terms : L/C,D/P,T/T,Western Union

Supply Ability : 100 Unit/Year

Delivery Time : 90DAYS

Packaging Details : Standard Package

Material : EPDM/NBR/PVC

Usage : Aircondition Cooper Protector,Boards, Handles,

Structure : Horizontal

Pipes : Inner diameter 12-108mm, wall thickness 6-30mm

Sheets : Width 0-2000mm, thickness 6-50mm

Contact Now

NBR & PVC & EPDM Rubber Insulation Foam Pipe/Sheet/Tube Production Line

Qingdao Huashida Machinery Co., Ltd. is special manufacture in the production of rubber extruder, air-conditioning and heat-insulating pipe equipment, flat-panel foaming lines, and rubber-plastic foam insulation pipe equipment. The rubber and plastic sponge insulation materials are made of acrylonitrile-butadiene rubber and polyvinyl chloride. A variety of high-quality auxiliary materials, soft high-grade insulation energy-saving materials foamed by special processes, absolutely not containing chlorofluorocarbons. This product has a soft, resistant to bending, cold, heat, flame retardant, waterproof, low thermal conductivity, shock absorption, sound absorption and other excellent performance.
We provide turnkey services, including installation, commissioning, formulation, process, and training.

This automated system is specifically engineered for producing:

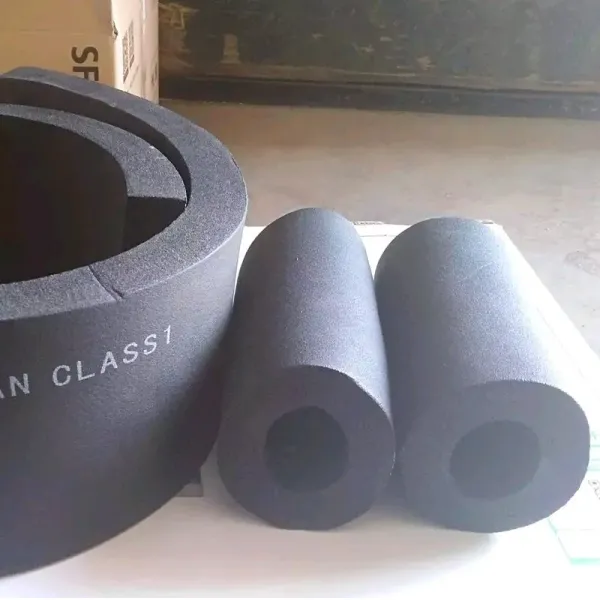

Rubber foam pipes (sponge pipes)
Rubber foam Sheets
Rubber-plastic insulation materials
Custom-profile insulation products

Specification:

Pipes: Inner diameter 12-108mm, wall thickness 6-30mm
Sheets: Width 0-2000mm, thickness 6-50mm
Heating method: Electric or natural gas

Model	Floor Space (m²)	Line Length	Output (kg/h)	Total Power (kW)
HSD-120	1800	80 m	150-180 kg/h	500 kW
HSD-150	2400	100 m	200-240 kg/h	650 kW

Applications

Qingdao Huashida Machinery Co., Ltd. is specialized in the production of Rubber extruders,its products are widely used in

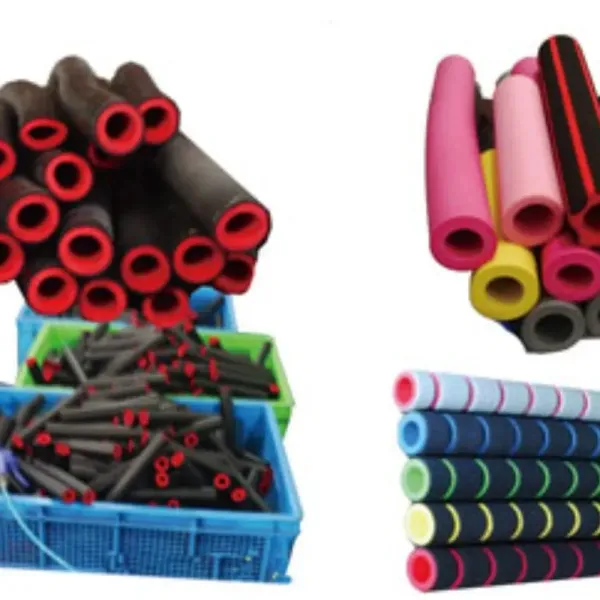

1.Air conditioner thermal insulation pipe equipment;

2.Edge tube plate ,

3.High-grade handle,

3.Fitness equipment sheath,
4.For cold and hot water supply and heating systems and other fields.

Advantage
1.The production line is divided into feeding section, compression section, throttling section, exhaust section and extrusion section.
2.The throttling section adopts shallow groove equal distance equal depth thread, which can make the rubber material obtain higher shear and stable conveying process, and also improve the exhaust effect.
3.Therefore, the production line has the advantages of fast extrusion speed, high degree of automation, excellent safety performance, advanced technical advantages in modeling, structural performance, vulcanization quality, etc., to ensure the quality of products.

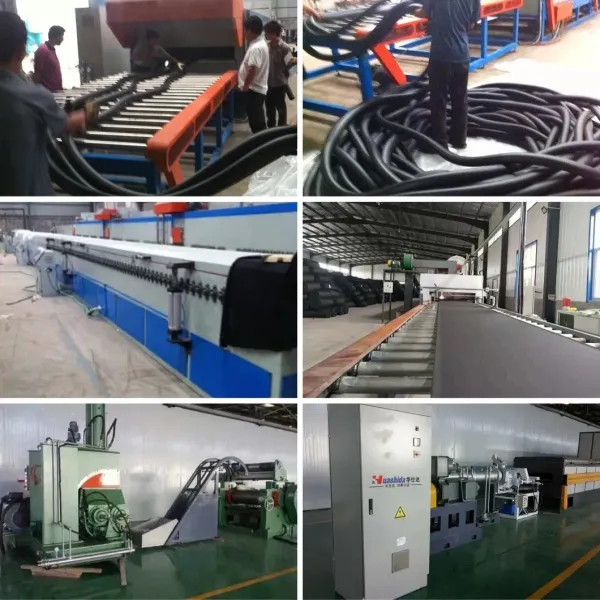

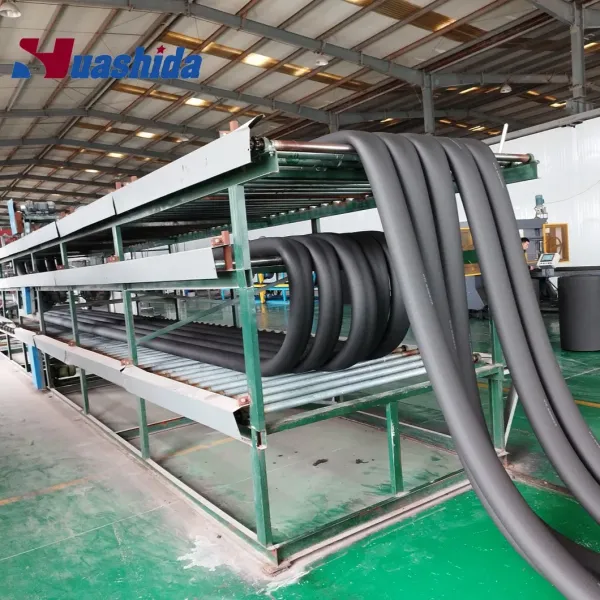

Equipment Show
-Rubber Cutter

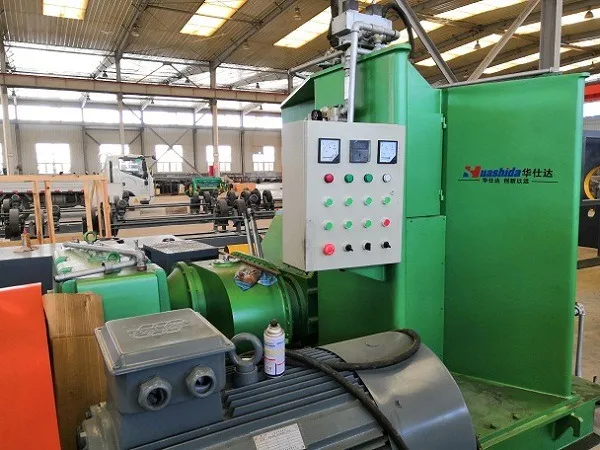

-Internal Mixer
-Bucket Elevator
-Open Mill
-Cold feed rubber Extruder
-Extruder head
-Transition roller 1.5m
-Far infrared foaming furnace
-Electric heating foaming furnace
-Conveying device
-Tractor&cutter
-Electric control system
